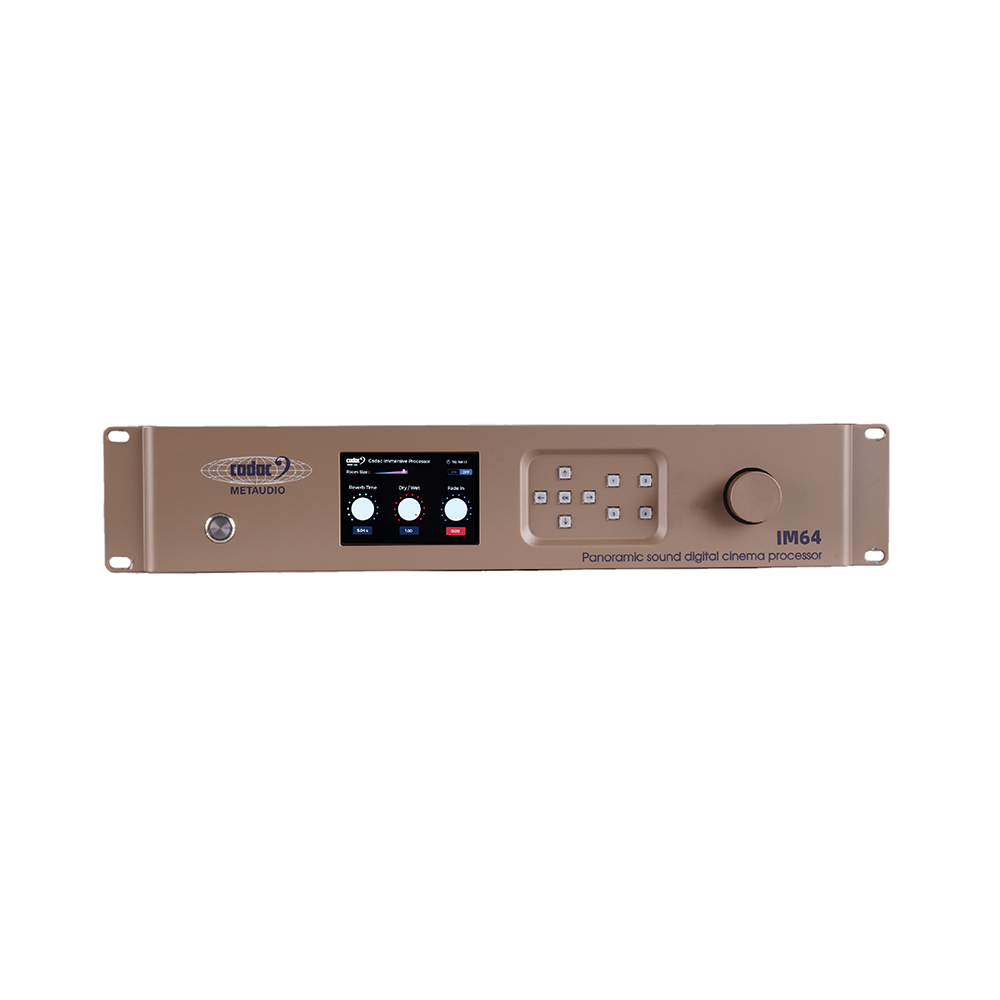

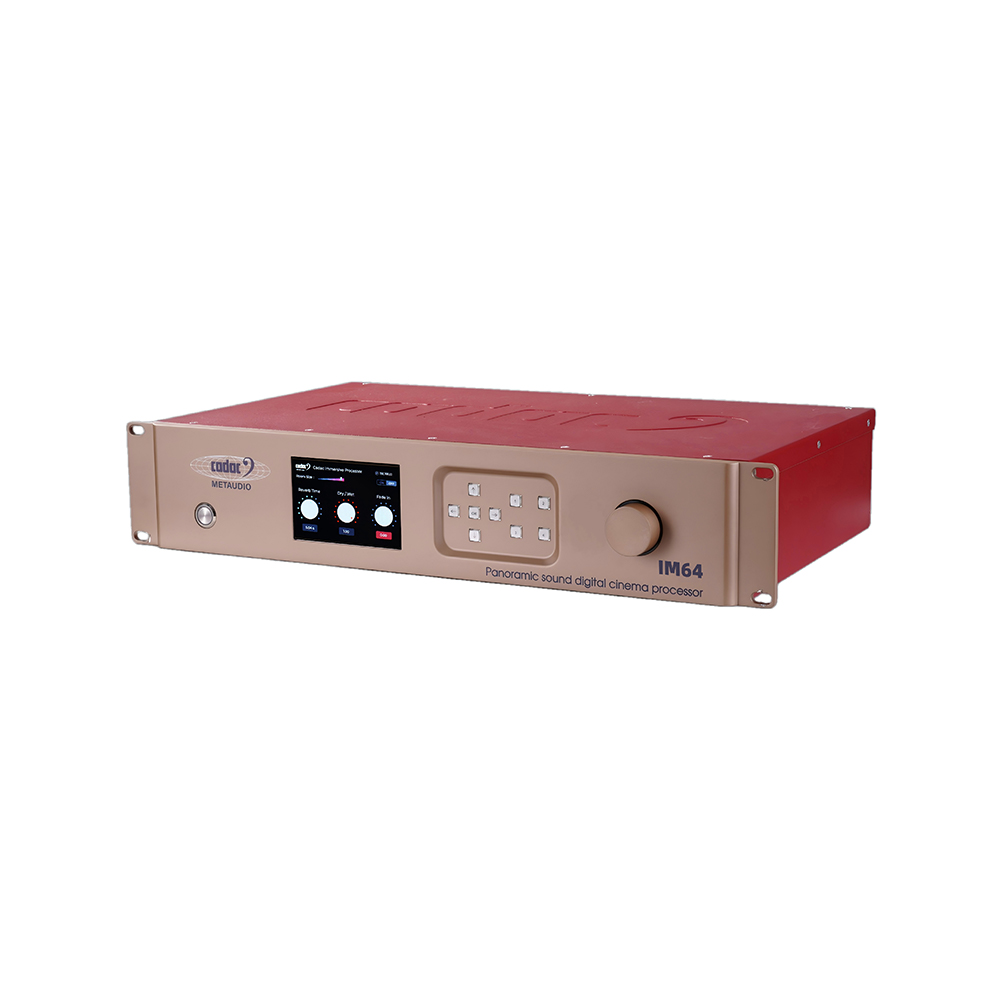

IM64

Based on ambisonics technical standard system certified by the ITU Compatible with current international technical standards such as 5.1, 7.1, and ATMOS.

  1. ■ Supported mainstream DAWs for plug-in production: PT, Nuendo, Pyramix
  2. ■ Supports upward and downward compatibility for multiple formats such as stereo, HRTF binaural surround,5.1, 7.1, 5.1.2, 5.1.4, 7.1.2, 7.1.4, etc
  3. ■ Conform to the ITU BS.2127 3Daudio, ATSC (International Television Commission) A/342, AC4 international standards, and compatible with Dolby and MPEG-H
  4. ■ Softwares, hardwares, and chip codecs based on 32-bit single precision floating-point operations
  • introduce
  • characteristic
  • parameter
  • download
  • inquiry

This processor is mainly used for existing and newly built large, medium, and small panoramic sound cinemas, immersive performances, and immersive fixed installations such as conference halls, banquet halls, and immersive theme parks. It adopts mature VBAP3D and HOA surround sound multi-dimensional audio algorithms and a world leading realization path, a mature and efficient transmission compression codec based on the IETF (lnternet Engineering Task Force) RFC 6716 standard. And it adopts a global leading calibration algorithm for acoustic space, which has been market tested and patented based on multi-source spatial measurement and calibration technology.

This product is based on the same Technology roadmap, also based on the ambisonics immersive technology standard system, conforms to the ITU International Telecommunication Union immersive audio international standard technology system, and is compatible with the current international 5.1, 7.1, atmos and other technical standards. This cinema panoramic sound processor adopts 64-channel all-digital interface, which can support up to 7th order sound field restoration accuracy, and is mainly used for newly built large, medium, and small cinemas. Similar to IM32,it combines 16 AES/EBU digital interfaces for input interface configuration to facilitate direct interfaces with a dedicated movie server.

  • Supported mainstream DAWs for plug-in production: PT, Nuendo, Pyramix.

  • Upward and downward compatibility for multiple formats such as stereo, HRTF binaural surround,5.1, 7.1, 5.1.2, 5.1.4, 7.1.2, 7.1.4, etc

  • Conform to the ITU BS.2127 3Daudio, ATSC (International Television Commission) A/342, AC4 international standards, and compatible with Dolby and MPEG-H formats.

  • Software, hardware, and chip codecs based on 32-bit single precision floating-point operations.

  • Provide efficient tools for converting old contents.

  • Improve the latency performance of encoding and decoding, and even increase the speed by 5-10 times compared to foreign codecs.

  • 64 channels of full-digital interface output, supporting up to 7th order sound field restoration accuracy.

  • 16 channels of AES/EBU digital input interface for direct connection to dedicated movie servers.

AES3 Input*1
MIC inputs*2
LINE inputs*2
NETWORK ports*2
S/PDF input*1
